How STRITE returned an HVAC system to its “comfort zone”
The paradox of remodeling is finding limitless opportunity in constraint. It’s kind of a zen thing — and if you’ve been doing it for four decades, it definitely colors the way you look at so called obstacles. Just ask STRITE president and “field marshal” Bob Mundy — a man for whom challenges are but thinly disguised opportunities.
Take a recent Southeast Boise project, for example. To realize our clients’ vision of opening up their floor plan to bring their kitchen, dining, and family rooms into a more unified space (the better in which to entertain, now that their nest was empty), we had to first remove load bearing walls. While the most obvious challenge in doing this (one we face quite often) was in finding structural support alternatives, we also needed to reroute the hidden infrastructure of wires, pipes, and ducts.
For the most part, finding new paths for plumbing and electrical conduits is a fairly mundane, if not always expeditious, exercise — one in which matters of efficiency typically rule the day. In the case of this project, however, Bob saw an opportunity to improve on the home’s comfort as well as its esthetics. To appreciate the challenge in which that opportunity was embedded, there are some things you first need to know about the world of HVAC. We’ll let Bob explain.
“Most two-story homes built in the ‘70s, as was the case with our clients’ house, have an HVAC design that does a poor job of balancing climate. In short, the upstairs is generally too hot in the summer and too cold in the winter. Trying to correct this with control units that are typically on the ground floor means making the downstairs, where people generally live during the day, uncomfortable…not to mention driving up utility costs. The answer, in most cases, is to add a secondary system for a dual zone approach — but that option just wasn’t in the budget with this project.”

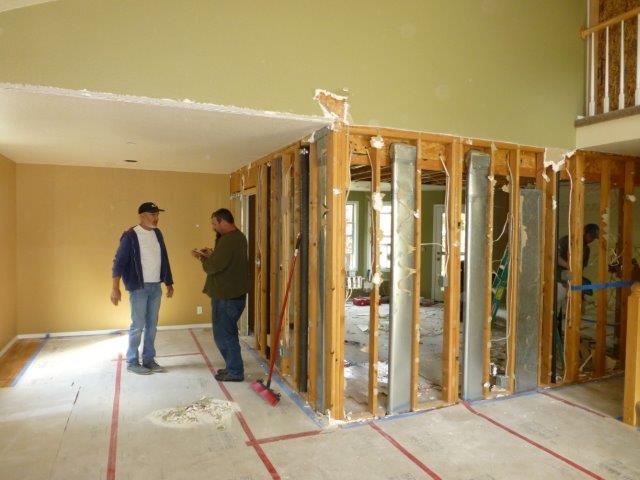

The HVAC ductwork in our clients’ home — what we call a “3×10” ducting system — went up through stud walls that we were taking out. For Bob, rerouting the ducts was unavoidable, but he wanted to do it in a way that would address the system’s inefficiencies. Following a brainstorming session with our HVAC trades folk, he came up the breakthrough concept of relocating the system’s trunk line, which had previously been located in a downstairs crawl space, to the attic by going up through the floor system via a downstairs pantry and then through an upstairs bedroom closet (both of which we then closed off). From this new location upstairs the system branched off to condition the house through vents we added under the home to replace those in the walls we removed. Since the return air and thermostat wasn’t balancing the upper floor with the newly opened area below, we moved the thermostat to the top of the stairs.
“We ended up with a system that far exceeds our clients’ air conditioning needs,” Bob reports. “Their master suite upstairs is very cool and we got a balance throughout the house without replacing or adding another unit — just by revamping the ducting. We probably saved between $5,000 and $7,000 with that approach, which we’ve since used again in another similar situation. We could have taken the attitude that since the ideal solution wasn’t in the budget, we’d simply walk away from it. As it was, we found an alternative that worked out beautifully.”
As it turns out, there’s thinking outside the box…and then there’s thinking outside the crawlspace.
